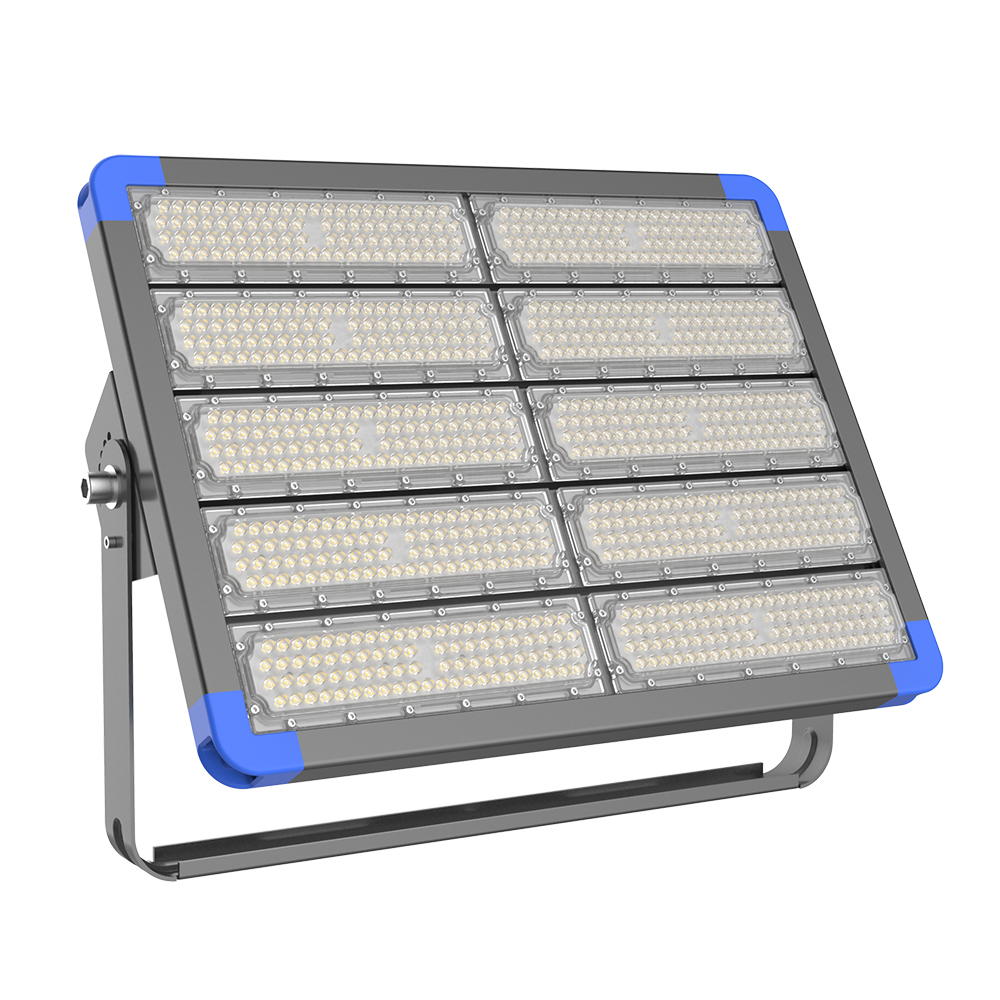

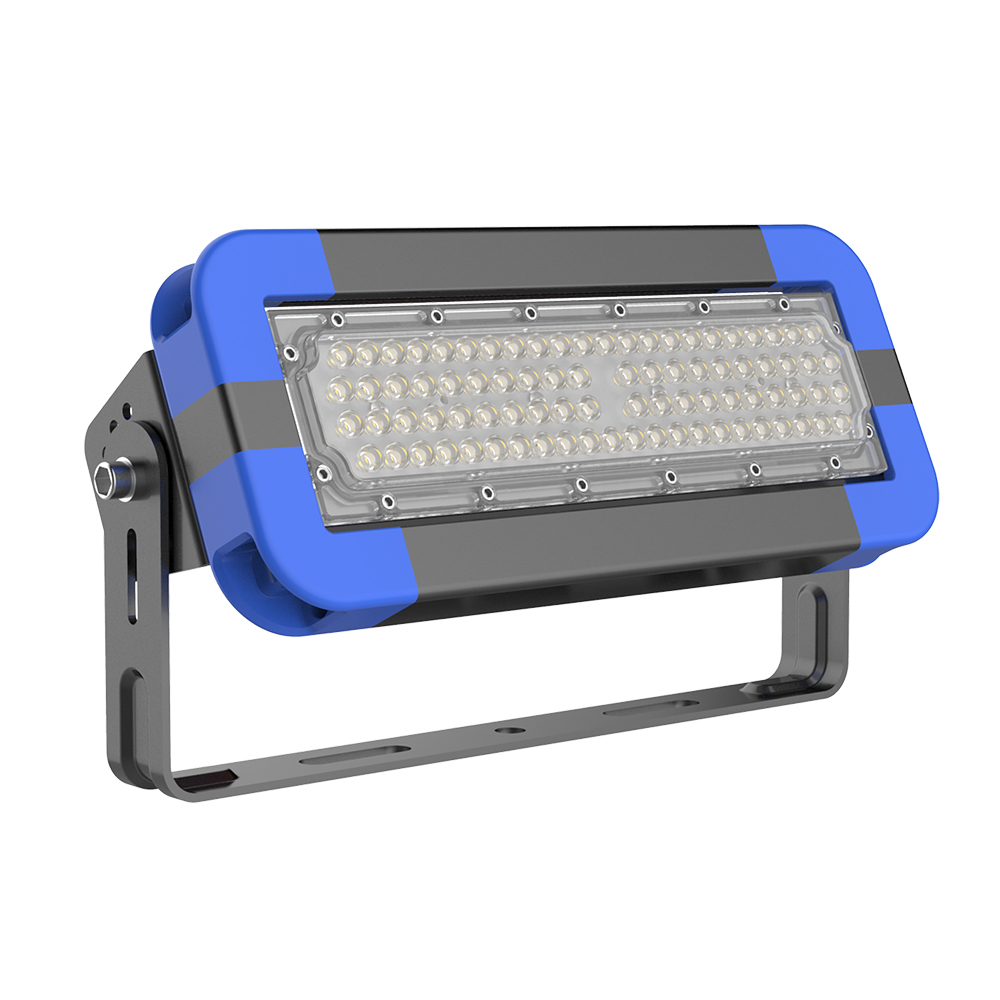

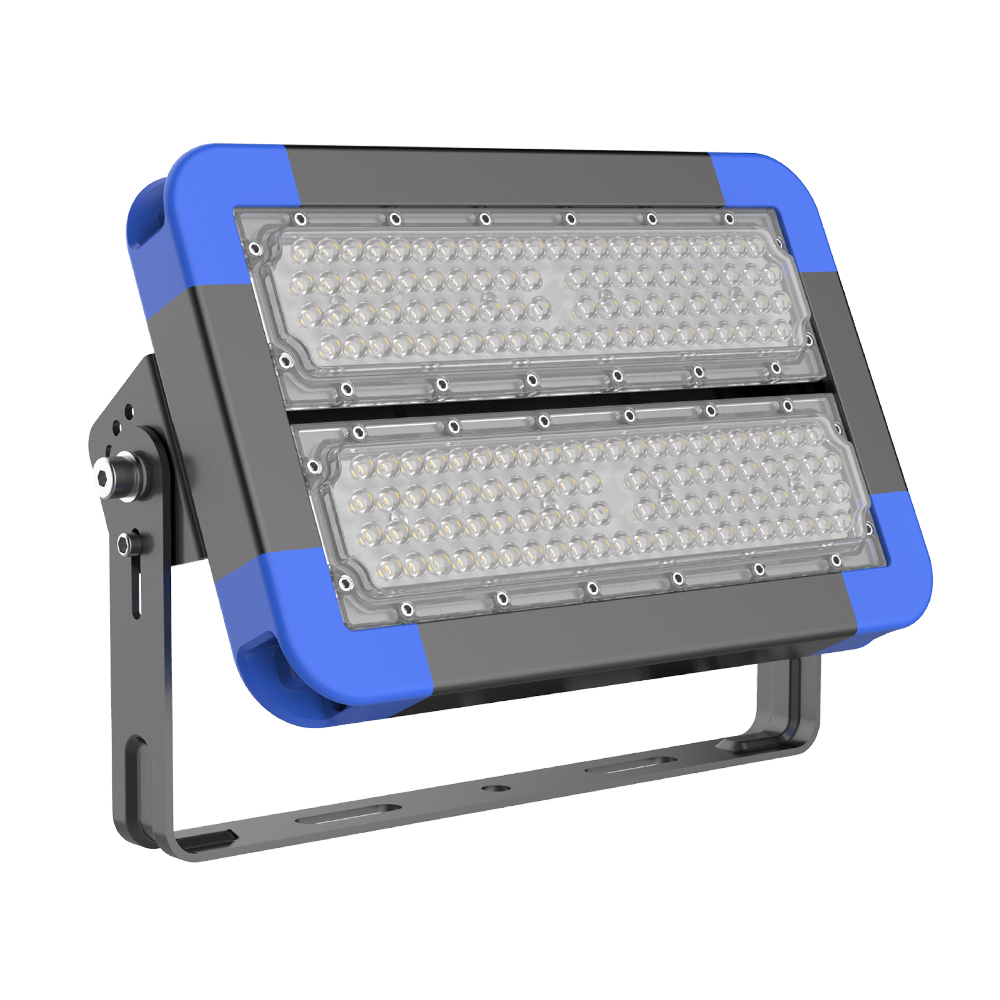

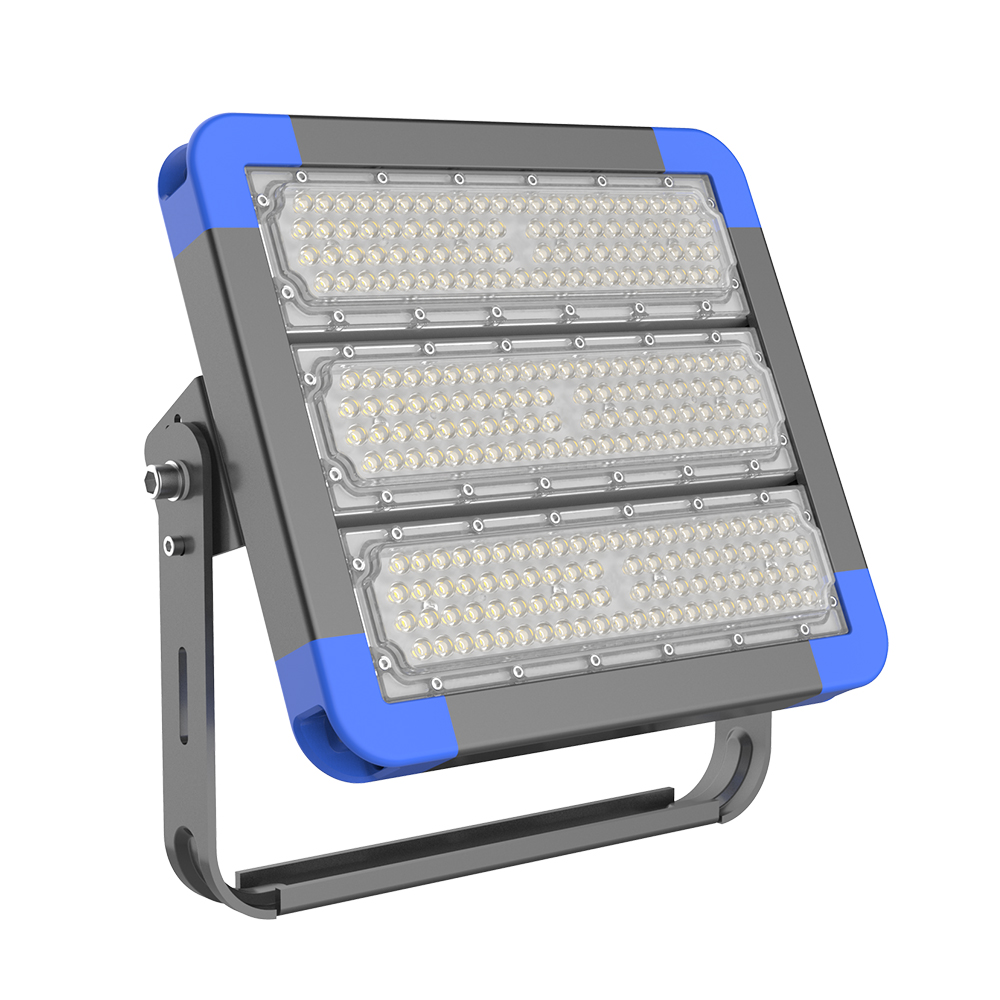

LED Module Tunnel Lights Fixtures Manufacturer

  • Black extrusion aluminum frame, provide high mechanical strength & best heat dissipation.
  • 180° adjustable bracket, allows for precise installation.
  • Integrated breather valve & extrusion aluminum heat sink result in excellent thermal management.
  • Anti-UV optical lens, 94% transmittance, professional light distribution: 15°/25°/45°/60°/90°/20*50°/30*70°/80*140°.
  • “L” type extended bracket & arms, 4mm thickness, anti-typhoon Rating 17.

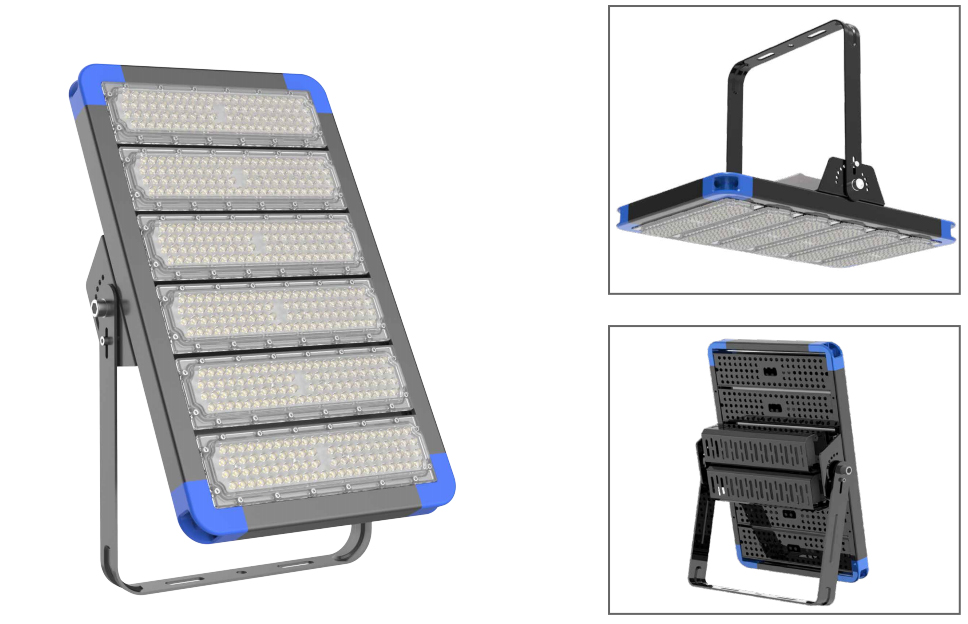

Features Display

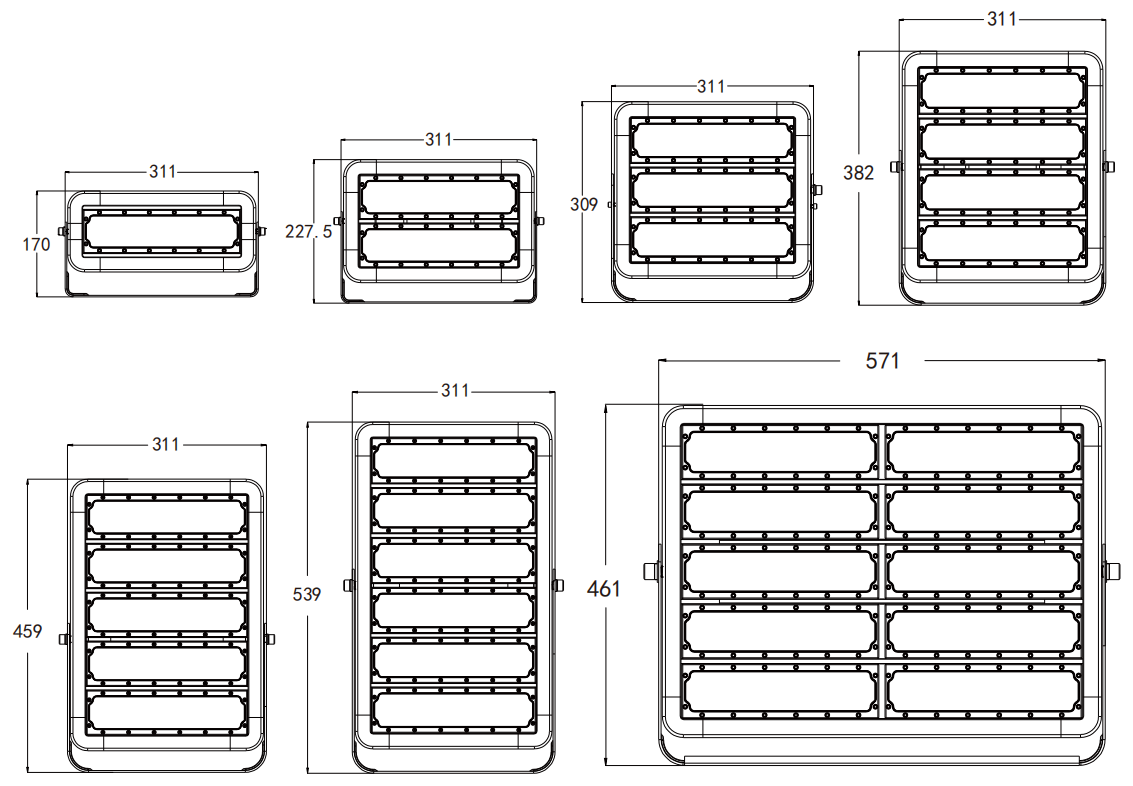

Dimension Drawing

Parameters

Parameters
LED Chips Lumileds 3030 / RA>70
Input Voltage AC100-277V
Color Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 60°/ 90°
IP & IK IP66 & IP69K / IK10
Driver Brand E-Lite Driver
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 0-10V(optional)
Housing Material Non-toxic corrosion resistant aluminum
Work Temperature -30°C ~ 45°C / -22°F~ 113°F
Mount Kits Option Hang Ring

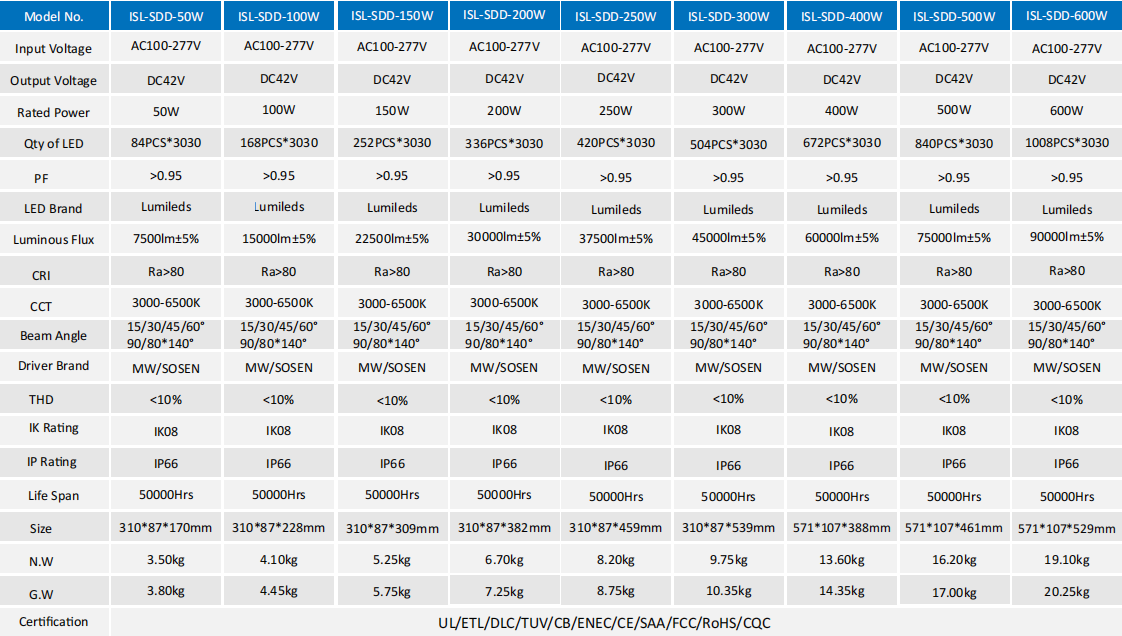

Specification

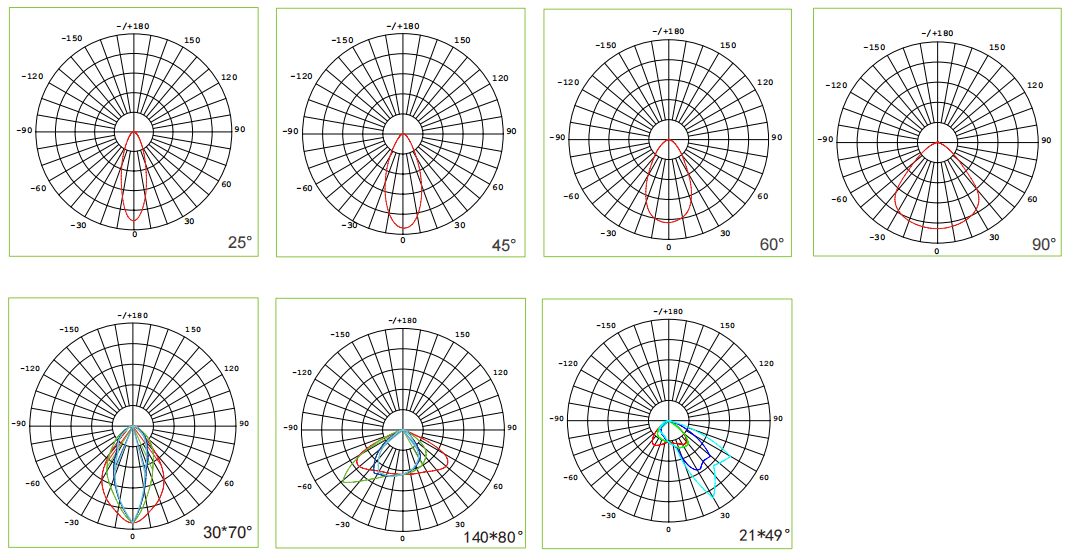

Photometry

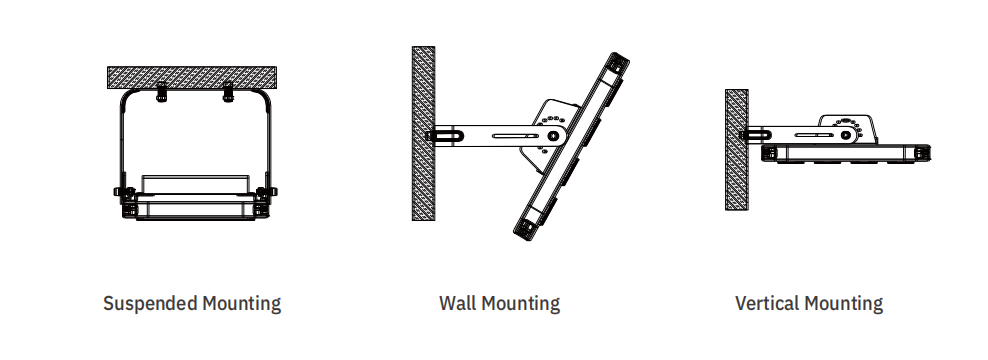

Installation

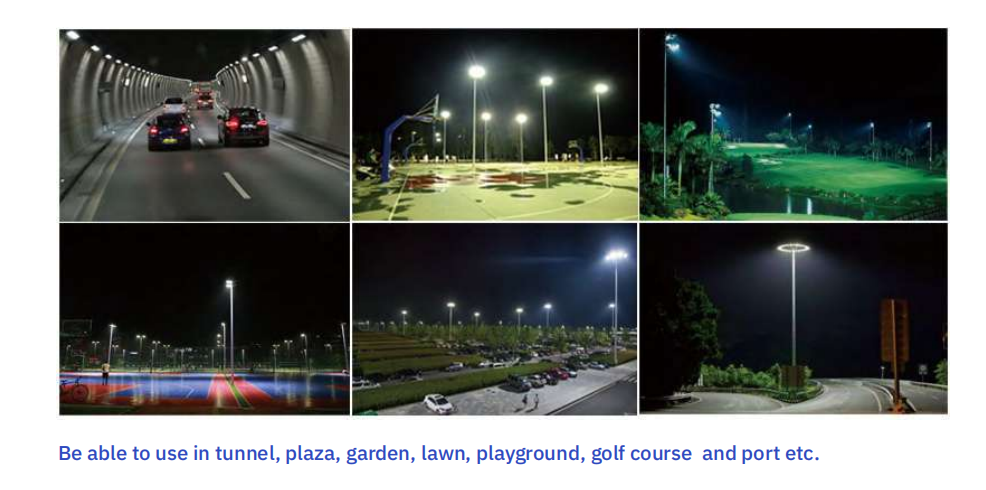

Application
